TA169 Ch= KCS43 & Ch= RK135D

RCA (RCA Victor Co. Inc.); New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1949/1950
perfect model
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 226534
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 31
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
  • Power out
  • 10 W (max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: TA169 Ch= KCS43 & Ch= RK135D - RCA RCA Victor Co. Inc.; New
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 37.75 x 39 x 23.5 inch / 959 x 991 x 597 mm
  • Notes

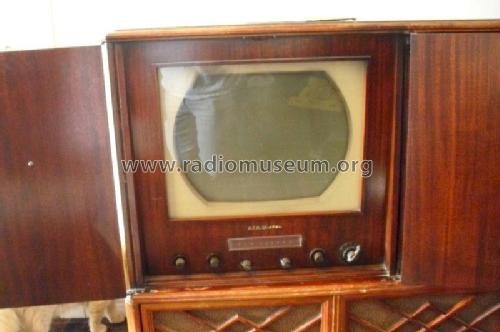

  • The RCA TA169 is an AC operated 31 tube combination BC/FM radio, phonograph and 16" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with picture tube 16GP4.  Cabinet color is Walnut, Mahogany or Oak. Has both a 45 RPM turntable and a 33 1/3, 78 RPM turntable.  The 45 RPM turntable used is model RP-168C, which holds up to ten 7 inch fine groove records.  The 33 1/3, 78 RPM turntable used in this model is 960285, which holds up to ten 12 inch or twelve 10 inch records.

    The BC band frequency range is 540 to 1600kHz.  The FM band frequency range is 88 to 108MHz.

  • Net weight (2.2 lb = 1 kg)
  • 190 lb (190 lb 0 oz) / 86.260 kg
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
