• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1954

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 266626

• • alternative name: RCA Manufacturing || Victor Talking Machine

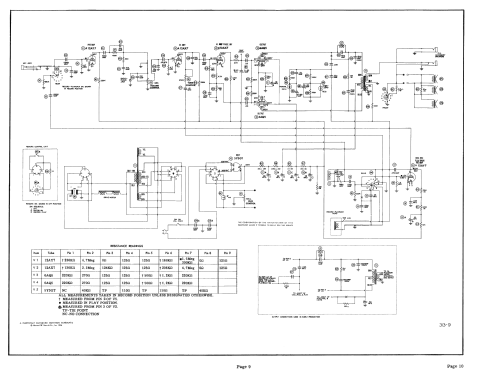

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12AY7 12AX7 6AQ5 6AQ5 5Y3GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 115V = 110 -120 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 7 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Tape Recorder "Executive" SRT-403 - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 15.875 x 14.25 x 10 inch / 403 x 362 x 254 mm

• Notes

• The RCA SRT-403 "Executive" is an AC operated 2 speed reel to reel tape player/recorder.
  Has Remote Control attachment. Has Qty(1) PM 4" speaker and Qty(2) PM 5.25" speakers. Also has footage counters.

• Net weight (2.2 lb = 1 kg)
• 35 lb (35 lb 0 oz) / 15.890 kg

• Price in first year of sale
• 229.95 USD

• Mentioned in
• -- Original prospect or advert (Magnetic Film & Tape Recording December 1954)

• Literature/Schematics (1)

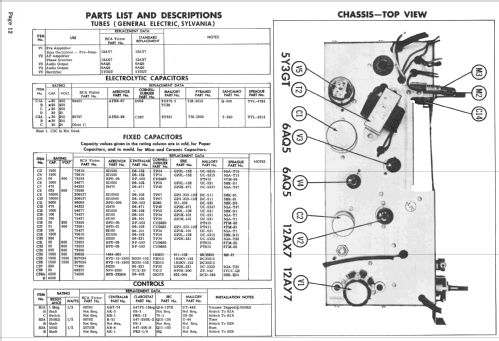

• Photofact Folder, Howard W. SAMS (Set 313, folder 9 dated 4-56)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
