- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1934 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 192450
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Storage and/or dry batteries / 6 & 90 Volt
- Loudspeaker
- - - No sound reproduction output.
- from Radiomuseum.org
- Model: TMV-18-D - RCA RCA Victor Co. Inc.; New
- Notes

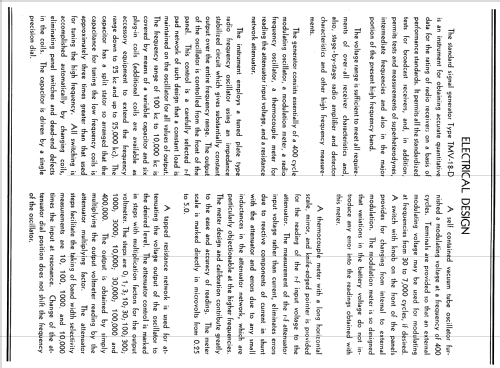

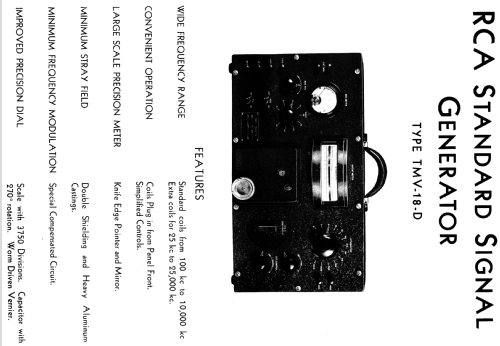

- RCA TMV-18-D is an RF Signal Generator.
Using the standard coils, the output frequency range is 100 kHz to 10000 kHz.
Extra coils are available that extend the output range from 24 kHz to 25000 kHz.
The output voltage range is 0.25 µV to 2 V.
- Source of data
- RCA Victor Service Notes "Red Book" Series
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
