• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 151123

• • alternative name: RCA Manufacturing || Victor Talking Machine

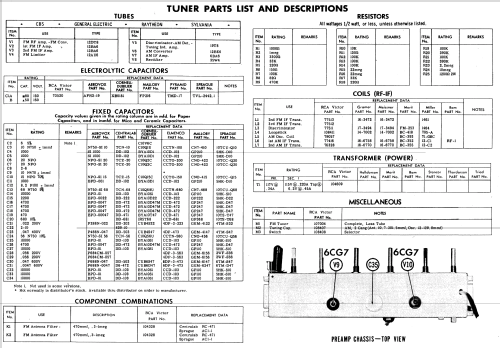

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 12DT8 12BA6 12BA6 12AU6 19T8 12BE6 6BA6 35W4 6CG7 6CG7 6CG7 6CG7 6BQ5 6BQ5 6BQ5 6BQ5 5AS4A

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 7 or more Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: TPM11 Ch= RC-1192 Ch= RS-179 - RCA RCA Victor Co. Inc.; New

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• AC operated AM - FM tuner, stereo preamplifier, stereo amplifier and 4 speed automatic record changer. Sams photofact set 491 folder 12 date 7-60 features the RCA models PM17 and PM18 with preamp chassis RS-179 and amp chassis RS-177A, the models TPM11 and TPM12 with tuner chassis RC-1192, preamp chassis RS-179 and amp chassis RS-177A as the same schematic.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 491 folder 12 date 7-60)
