TPM13 Ch= RS171F Ch= RC-1192
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 148966
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Sams photofact.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: TPM13 Ch= RS171F Ch= RC-1192 - RCA RCA Victor Co. Inc.; New
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- AC operated AM - FM tuner with stereo amplifier and 4 speed automatic record changer. Sams photofact set 500 folder 13 date 9-60 features the RCA models PM19, PM22, PR21 with amp chassis RS-171D or RS-171F, the model STA2 with tuner chassis RC-1192A and amp chassis RS-171D or RS-171F, the model TPM13 with tuner chassis RC-1192 and amp chassis RS-171D or RS-171F as the same schematic.
- Literature/Schematics (1)

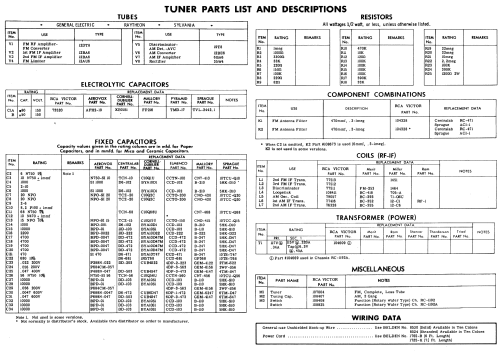

- Photofact Folder, Howard W. SAMS (Set 500 folder 13 date 9-60)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
