Victrola U-112 Ch= RC-341C
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 54837
-
- alternative name: RCA Manufacturing || Victor Talking Machine

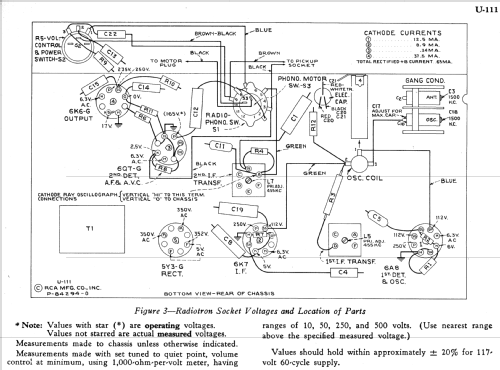

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Victrola U-112 Ch= RC-341C - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
-
Combines Victor Record and radio entertainment. Larger cabinet than U-111 to accept 12" records with lid closed.
- External source of data
- Ernst Erb
- Source of data
- Machine Age to Jet Age III
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Rider's Perpetual, Volume 9 = 1938 and before (RCA Victor Service Notes for 1938)
