V-221 Ch= RC-564
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 54913
-
- alternative name: RCA Manufacturing || Victor Talking Machine

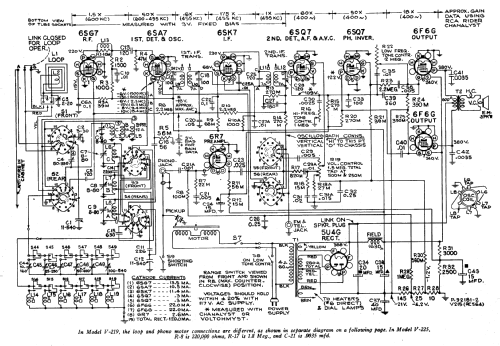

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Power out
- 12 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: V-221 Ch= RC-564 - RCA RCA Victor Co. Inc.; New
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 38 x 36 x 17.7 inch / 965 x 914 x 450 mm
- Notes
- Phonograph: type pickup crystal.
- Net weight (2.2 lb = 1 kg)
- 50.8 kg / 111 lb 14.3 oz (111.894 lb)
- External source of data
- Ernst Erb
- Source of data
- Guide to Old Radios
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Literature/Schematics (1)
- RCA Victor Instruments Service Notes 1941-1942
