• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1940

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 54929

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 6A8 25Z6G

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Material
• Wooden case

• from Radiomuseum.org

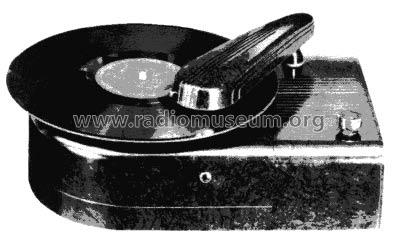

• Model: VA-21 Wireless Record Player - RCA RCA Victor Co. Inc.; New

• Dimensions (WHD)
• 12.5 x 5 x 8.5 inch / 318 x 127 x 216 mm

• Notes
• Wireless phonograph. 530-625Kc.

• Net weight (2.2 lb = 1 kg)
• 7.25 lb (7 lb 4 oz) / 3.292 kg

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Literature/Schematics (1)
• -- Schematic

• Literature/Schematics (2)
• RCA Victor Service Notes "Red Book" Series
