VHP30Z "The Magician" Ch= RS-226
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1966
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 235790
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Audio-Amplification; 3 AF stage(s)
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 4 inch = 10.2 cm
- Power out
- 2 W (4 W max.)
- Material
- Various materials
- from Radiomuseum.org
- Model: VHP30Z "The Magician" Ch= RS-226 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 19 x 17.25 x 10.25 inch / 483 x 438 x 260 mm
- Notes
-
The RCA VHP30Z is a portable self contained combination stereophonic record changer, amplifier and speaker system. Cabinet is suitcase shaped with carrying handle. The cabinet color is dark mineral gray. Has Qty(2) PM 4" speakers. Uses dual channel printed circuit board chassis RS-226. Also uses 4 speed automatic record changer RP-222-49, with speeds of 16-2/3, 33-1/3, 45 and 78 RPM. Record sizes that can be used are 7", 10" and 12". Record capacity is up to Qty(6) of the same size records.
The following models use the same schematic and cabinet but have different cabinet colors:
Model Number Cabinet Color VHP30J Alabaster VHP30Z Dark Mineral Gray
- Net weight (2.2 lb = 1 kg)
- 22 lb (22 lb 0 oz) / 9.988 kg
- Literature/Schematics (1)

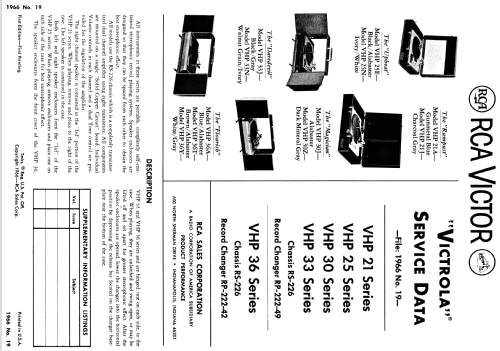

- - - Manufacturers Literature (RCA Datasheets 1966 No. 18, No. 19)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
