VHP36A "The Flourish" Ch= RS-226

RCA (RCA Victor Co. Inc.); New York (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1966
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 235794
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 8
  • Semiconductors
  • Main principle
  • Audio-Amplification; 3 AF stage(s)
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 120 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 2 W (4 W max.)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: VHP36A "The Flourish" Ch= RS-226 - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 21.125 x 17.5 x 10.5 inch / 537 x 445 x 267 mm
  • Notes

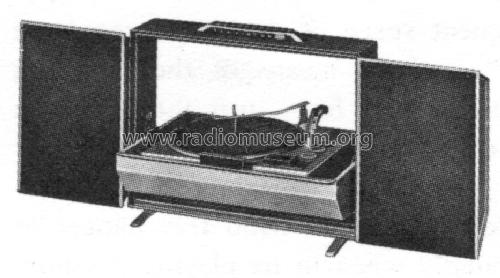

  • The RCA VHP36A is a portable self contained combination stereophonic record changer, amplifier and speaker system.  Cabinet is suitcase shaped with carrying handle.  The cabinet color is blue/alabaster.  Has Qty(2) PM 3.5" speakers and Qty(2) PM 6.5" speakers. Uses dual channel printed circuit board chassis RS-226.  Also uses 4 speed automatic record changer RP-222-42, with speeds of 16-2/3, 33-1/3, 45 and 78 RPM. Record sizes that can be used are 7", 10" and 12".  Record capacity is up to Qty(6) of the same size records.

    The following models use the same schematic and cabinet but have different cabinet colors:

    Model Number Cabinet Color
    VHP36A Blue/Alabaster
    VHP36T Brown/Alabaster
    VHP36Y White/Gray



  • Net weight (2.2 lb = 1 kg)
  • 32 lb (32 lb 0 oz) / 14.528 kg
  • Literature/Schematics (1)
  • - - Manufacturers Literature (RCA Datasheets 1966 No. 18, No. 19)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
