VHR202 Ch= RC-548
RCA (RCA Victor Co. Inc.); New York (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 54932
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Recording phonogr.-Disc Recorder
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: VHR202 Ch= RC-548 - RCA RCA Victor Co. Inc.; New
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 32 x 34 x 17 inch / 813 x 864 x 432 mm
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference

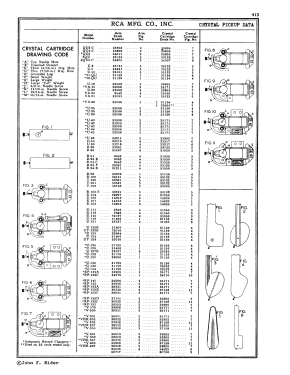

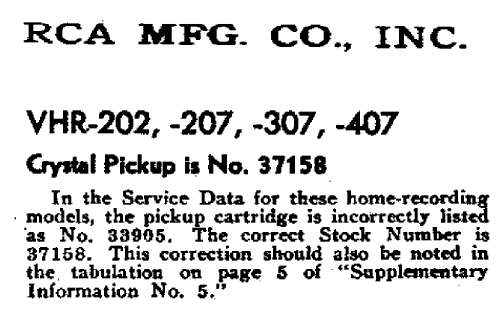

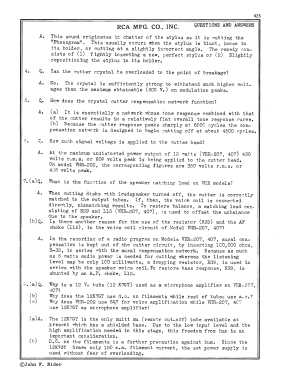

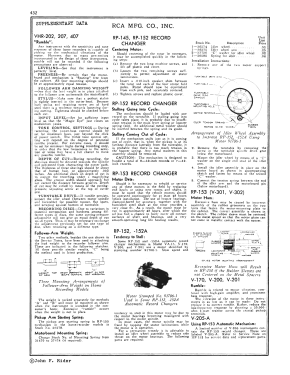

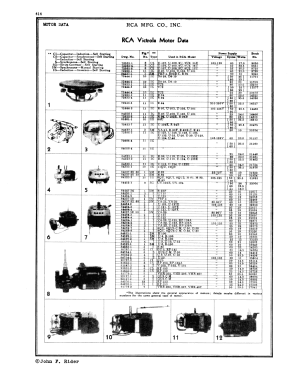

- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Mentioned in
- Guide to Old Radios
- Literature/Schematics (1)

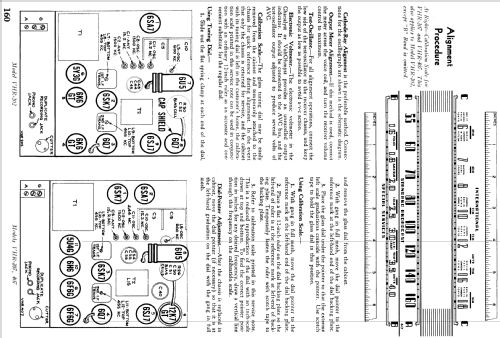

- RCA Victor Service Notes "Red Book" Series
