- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 295094

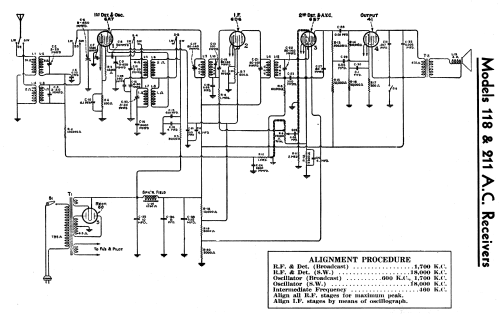

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 105 to 125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 211 - RCA Victor International,
- Notes
-
The Canadian RCA-Victor model 211 is a 5-tube broadcast and shortwave radio. For 25 or 60 Hz depending on nameplate rating. Requires an external wire antenna.
- Literature/Schematics (1)
- - - Manufacturers Literature (RCA Victor Service Manual (Montreal, Canada))
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
