- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1953 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 308888

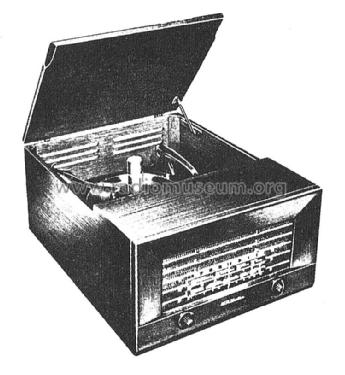

From RCC manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
- Power out
- 1 W (1.8 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 35QU - RCA Victor International,
- Shape
- Tablemodel, low profile (big size).
- Notes
-
The RCA-Victor model 35QU is a 5-tube table top combination radio with 3-speed record changer. Covers AM broadcast and 2.3-7 MHz and 7-22 MHz shortwave. For 25 or 60 Hz depending on nameplate rating. See also USA model 35QU.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Supplement 32)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
