- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1949 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 294778

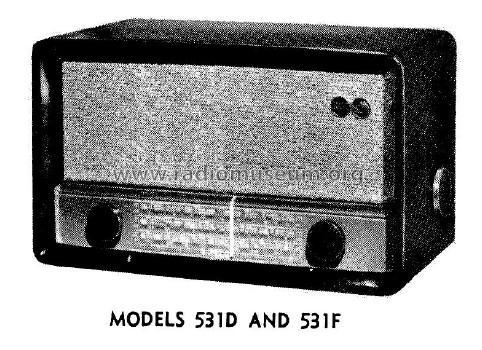

From service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 105 to 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1 W (1.5 W max.)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: 531F - RCA Victor International,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 14.5 x 8 x 7.8 inch / 368 x 203 x 198 mm
- Notes
-
The Canadian RCA-Victor model 531F is a 5-tube radio with 4x6 inch eliptical speaker. Covers standard broadcast and 2.05 to 6.5 MHz and 7 to 22 MHz shortwave.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Supplement 21 page 82, 83 and 87)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
