Victrola 5U
RCA Victor (International), Montreal
- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 182078

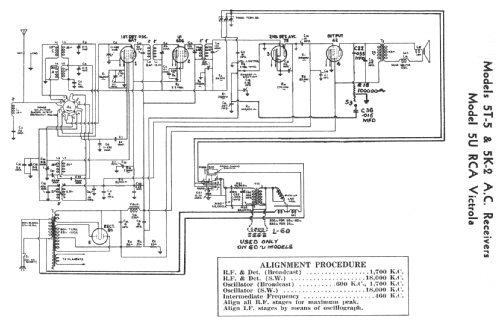

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: Victrola 5U - RCA Victor International,
- Notes
-
The Canadian RCA-Victor Victrola model 5U is a 5-tube radio / phonograph for standard broadcast and shortwave reception. Requires an external antenna. For 25 or 60 Hz depending on nameplate rating.
- Circuit diagram reference
- Radio College of Canada
- Literature/Schematics (1)
- Canada schematics RCA Victor page 47,48
- Literature/Schematics (2)
- - - Manufacturers Literature (RCA Victor Service Manual (Montreal, Canada))
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
