- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 301744
From RCA service manual.
From RCA service manual.

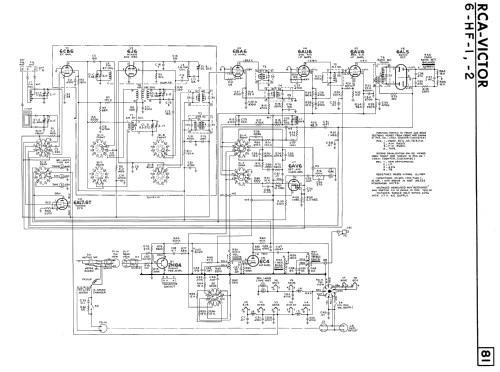

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- 6CB6 6J6 6BA6 6AU6 6AL7GT 6AU6 6AL5 6AV6 6C4 12AU7 6AU6 6AU6 6V6GT 6V6GT 6V6GT 6V6GT 5U4G 12AX7 12AU7 12AU7 6E5 6X4
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz; 5 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer + Tape Recorder; Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 110-120 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 20 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 6-HF-1 - RCA Victor International,
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 36.5 x 43 x 23 inch / 927 x 1092 x 584 mm
- Notes
-
The RCA-Victor model 6-HF-1 is a 22-tube (includes 5 tubes in the tape recorder) console AM/FM radio with built in record changer and reel to reel tape recorder. Has two 3.5 inch tweeters, a five inch mid range and a 15 inch woofer. Available in walnut or mahogany finish. See also USA model 6-HF-1.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1956 supplement 37)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
