- Country
- Argentina
- Manufacturer / Brand
- RCA Victor; Buenos Aires
- Year
- 1947 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 324505
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- Presumably Dynamic Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
- Power out
- 2.5 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org

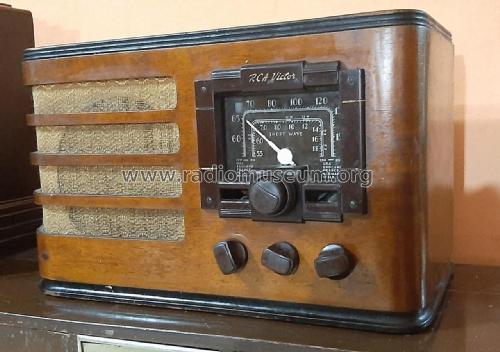

- Model: 865 - RCA Victor; Buenos Aires
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 400 x 200 x 250 mm / 15.7 x 7.9 x 9.8 inch
- Net weight (2.2 lb = 1 kg)
- 4.3 kg / 9 lb 7.5 oz (9.471 lb)
- Author
- Model page created by Julio Alberto Sanz-Litardi. See "Data change" for further contributors.
