- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1937 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 290102

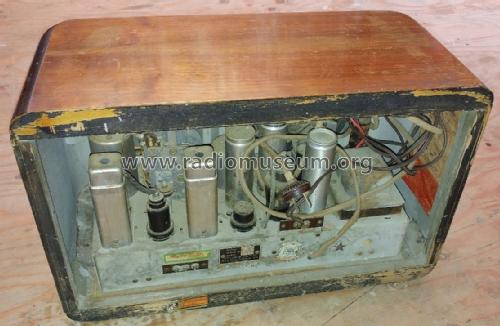

From eBay listing 112352490165.
From eBay listing 112352490165.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 86T - RCA Victor International,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The RCA Victor model 86T is a table radio covering standard broadcast and shortwave.
The frequency range is 550 to 1700 kHz, 2.1 to 7 MHz and 6.5 to 22 MHz.
This model shares the same schematic and chassis as the USA model 86T but has a different cabinet. The CGE model F62 uses the same schematic also.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1937/38 CGE sheet 23)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
