- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 148589
org.Prospekt
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 8 W (12 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 9W125 - RCA Victor International,
- Shape
- Console: Chairside Radio.
- Dimensions (WHD)
- 35 x 36 x 17.25 inch / 889 x 914 x 438 mm
- Notes
-
The Canadian RCA-Victor model 9W125 is a 12-tube AM/FM/SW console radio with built in 45 rpm record changer and 78 rpm record changer.
Covers standard broadcast and 5.8 to 10 MHz shortwave and 11.4 to 18.2 MHz shortwave and 88 to 108 MHz FM. For 25 or 60 Hz depending on nameplate rating.
- Source of data
- -- Original-techn. papers.
- Mentioned in
- RCA 1949 No. 25
- Literature/Schematics (1)

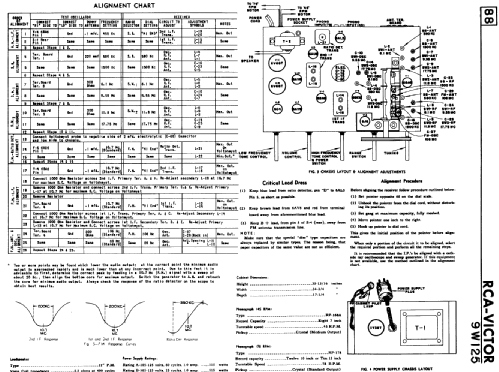

- Radio College of Canada (RCC) (Supplement 22 page 86 to 88 and 92)
- Author
- Model page created by Ashis Mukerjea. See "Data change" for further contributors.
