- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1950 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 294686
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 2.5 W (3.5 W max.)
- Material
- Wooden case
- from Radiomuseum.org

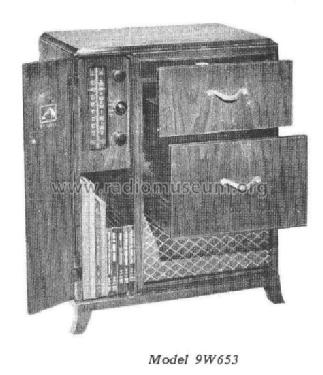

- Model: 9W653 - RCA Victor International,
- Shape
- Console with any shape - in general
- Notes
-
The Canadian RCA-Victor model 9W653 is a 6-tube radio / double record changer console. Covers standard broadcast and 5.8 to 18 MHz shortwave. Has a 45 rpm and 33/78 rpm changer. For 25 or 60 Hz depending on nameplate rating.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Supplement 22 page 85 and 92)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
