- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1949 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 299077
From service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 to 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2.5 W (3.5 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 9Y5S - RCA Victor International,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 12.8 x 8 x 13.5 inch / 325 x 203 x 343 mm
- Notes
-

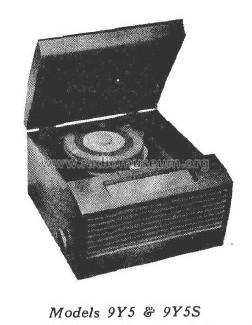

The Canadian RCA Victor model 9Y5S is a 5-tube combination radio / 45 rpm record changer. Covers broadcast and 5.8-18 MHz shortwave. Uses model RP168 changer.
Similar to model 9Y5 but with the addition of shortwave. For 25 or 60 Hz depending on nameplate rating.
