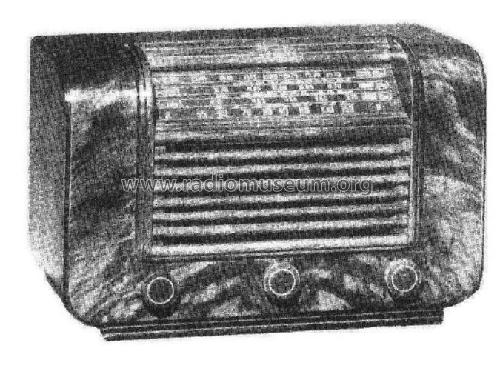

A-23 2nd Production

RCA Victor (International), Montreal

Data
Forum
Pictures
Collections

  • Year
  • 1941/1942 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 299585

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 105 to 125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
  • Power out
  • 1.2 W (2.5 W max.)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: A-23 [2nd Production] - RCA Victor International,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 14.5 x 9.75 x 7.75 inch / 368 x 248 x 197 mm
  • Notes

  • The RCA Victor model A-23 is a 5-tube table radio covering standard broadcast and the 31, 25 and 19 meter shortwave bands. The model A-23 was originally released (1st Production) with a 5" permanent  magnet speaker. The plate voltage of the 6K6 output tube was set at 235V. This allowed it to produce a clean output of 2 watts. RCA then released the A-23 (2nd Production) with a 5" electrodynamic speaker and reduced the plate voltage to 175V, thereby reducing the clean output to 1.25 watts.

  • Literature/Schematics (1)
  • RCA Service Manual Vol 3 P. 9
  • Author
  • Model page created by Tom Seeger. See "Data change" for further contributors.
