• Country
• Canada

• Manufacturer / Brand
• RCA Victor (International), Montreal

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 329422

• Number of Tubes
• 6

• Valves / Tubes
• 12BE6 12BD6 12AV6 35C5 6ME10 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.7 W (1 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

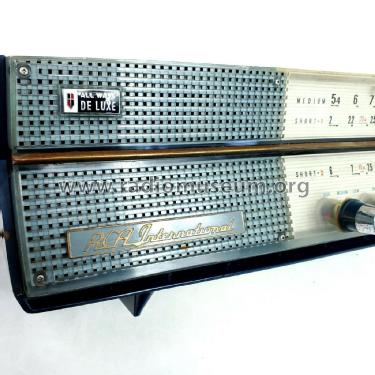

• Model: All Wave De Luxe BE360 - RCA Victor International,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 450 x 140 x 137 mm / 17.7 x 5.5 x 5.4 inch

• Notes

• Covers standard broadcast plus 2-6 MHz and 6-18 MHz shortwave. Has eye tube.
  Made in Japan

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Author
• Model page created by Aldo Andreani. See "Data change" for further contributors.
