- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1940 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 299517

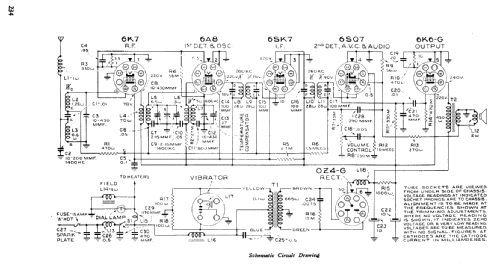

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 260 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Power out
- 1.8 W (3.7 W max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: Cruiser - RCA Victor International,
- Shape
- Chassis only or for «building in»
- Notes
-
The RCA Victor "Cruiser" is a 6-tube car radio for 6-volt negative ground systems. Has vibrator type B+. Push button station selector and integral speaker.
- Literature/Schematics (1)
- RCA Service Manual Vol 2 P. 233
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
