Generador de Señales (Signal Generator) SC-60
RCA Victor; Buenos Aires
- Country
- Argentina
- Manufacturer / Brand
- RCA Victor; Buenos Aires
- Year
- 1960 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 196703

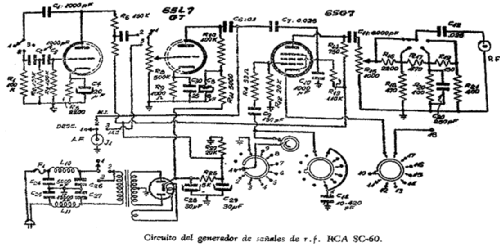

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Generador de Señales SC-60 - RCA Victor; Buenos Aires
- Shape
- Tablemodel, with any shape - general.
- Notes
- 3 fixed frequencies: 465 kHz, 600 kHz, 1500 kHz
6 variable bands: A to F
Modulation level control, either modulated by an internal fixed frequency or by an external AF input.
Fixed and variable attenuation.
- Author
- Model page created by Javier Albinarrate. See "Data change" for further contributors.
