• Country
• Canada

• Manufacturer / Brand
• RCA Victor (International), Montreal

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 153833

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6SA7 6SK7 6SQ7 6K6G 5Y4G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

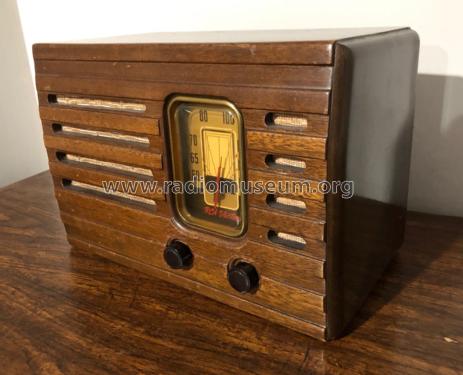

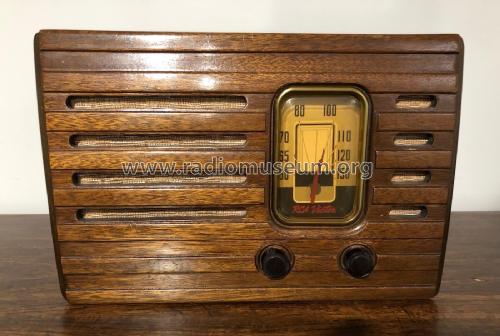

• Model: Mascot - RCA Victor International,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 13.25 x 9 x 7 inch / 337 x 229 x 178 mm

• Net weight (2.2 lb = 1 kg)
• 4.8 kg / 10 lb 9.2 oz (10.573 lb)

• Price in first year of sale
• 37.95 CD$

• Source of data
• - - Manufacturers Literature

• Mentioned in
• RCA Volume 3 page 49

• Author
• Model page created by Ashis Mukerjea. See "Data change" for further contributors.
