- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1956 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 300879

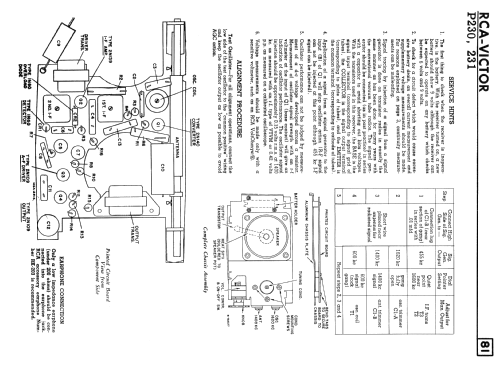

From RCC manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.12 inch = 5.4 cm
- Power out
- 0.025 W (0.04 W max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: P230 - RCA Victor International,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 5.5 x 3.3 x 1.5 inch / 140 x 84 x 38 mm
- Notes
-
The RCA-Victor model P230 is a 4-transistor pocket radio. Uses one 9V battery. See also USA model P230.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1957 Supplement 40)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
