• Country
• Canada

• Manufacturer / Brand
• RCA Victor (International), Montreal

• Year
• 1930 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 294945

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 235 227 224 235 227 245 245 280

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

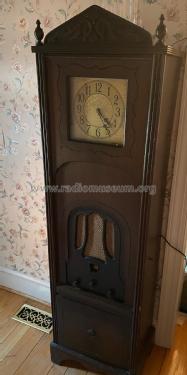

• Model: R-7 - RCA Victor International,

• Notes

• The Canadian RCA-Victor model R-7 is an 8-tube radio for broadcast reception. Requires an external antenna. For 25 or 60 Hz depending on nameplate rating.

  May be similar to USA model R-7.

• Literature/Schematics (1)
• - - Manufacturers Literature (RCA Victor Service Manual (Montreal, Canada))

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
