- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1965 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 324378

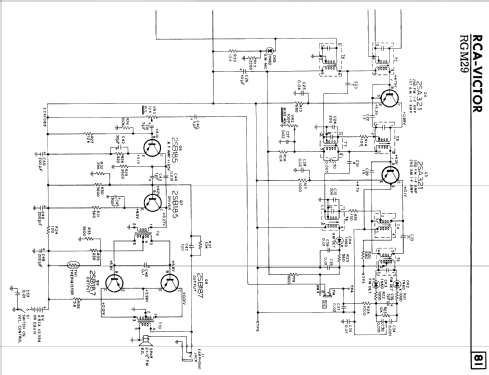

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / 4 x AA 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: RGM29 - RCA Victor International,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-
The RCA-Victor model RGM29 is a 9-transistor portable AM/FM radio. Uses 4 AA batteries. Similar to USA model RGM29E.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1966 Supplement 77)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
