• Country
• Canada

• Manufacturer / Brand
• RCA Victor (International), Montreal

• Year
• 1936 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 295202

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

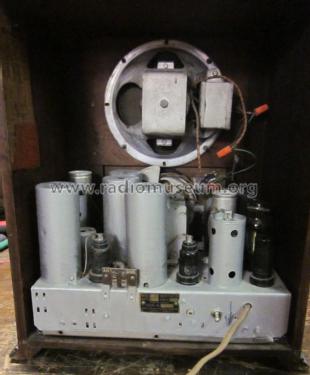

• 6A7 6D6 6D6 6B7 41 80

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 105 to 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

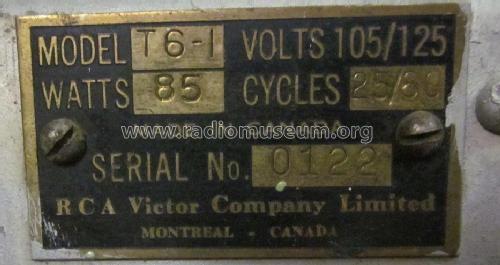

• Model: T6-1 [Glass Tubes] - RCA Victor International,

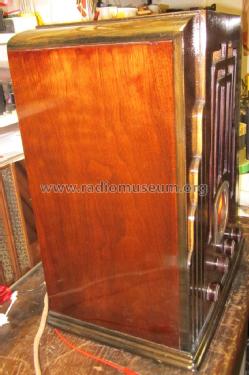

• Shape
• Tablemodel, with any shape - general.

• Notes

• The Canadian RCA-Victor model T6-1 is a 6-tube radio. Covers standard broadcast and shortwave. Requires an external wire antenna. The T6-1 came in 2 versions, with glass tubes and with metal tubes.

• Literature/Schematics (1)
• - - Manufacturers Literature (RCA Victor Service Manual (Montreal, Canada))

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
