- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 148809

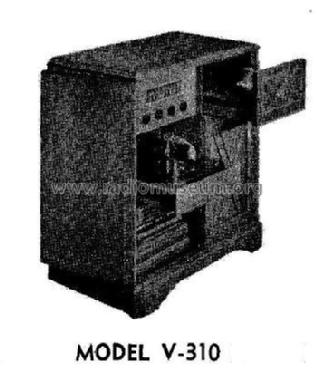

From service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 11 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: V310 - RCA Victor International,
- Shape
- Console: Chairside Radio.
- Dimensions (WHD)
- 32.5 x 34 x 18.25 inch / 826 x 864 x 464 mm
- Notes
- This console has two record changers. RP168 for 45 rpm records and RP-201 for 78 and 33 rpm records.
- Source of data
- -- Original-techn. papers.
- Mentioned in
- RCA 1950 No. 20
- Author
- Model page created by Ashis Mukerjea. See "Data change" for further contributors.
