Victor 28V Ch= American Bosch 28
RCA Victor (International), Montreal
- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1928
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 213428
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- TRF without regeneration
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 105; 115; 125 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org

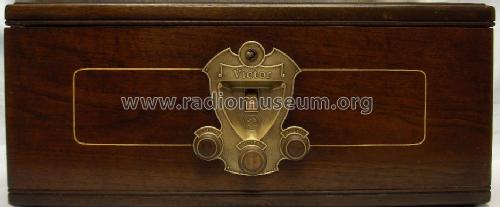

- Model: Victor 28V Ch= American Bosch 28 - RCA Victor International,
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 23.5 x 10 x 10.5 inch / 597 x 254 x 267 mm
- Net weight (2.2 lb = 1 kg)
- 40 lb (40 lb 0 oz) / 18.160 kg
- Mentioned in
- AntiqueRadioSchematics.org
- Author
- Model page created by Bruce Morgenstern. See "Data change" for further contributors.
