Victrola 331
RCA Victor (International), Montreal
- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1934 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 295168

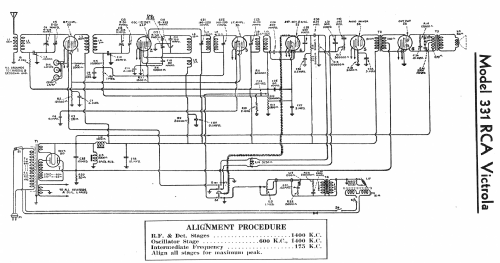

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 to 125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Victrola 331 - RCA Victor International,
- Shape
- Console with any shape - in general
- Notes
-
The Canadian RCA-Victor Victrola model 331 is a 7-tube combination radio and record changer. For 25 or 60 Hz depending on nameplate rating.
- Literature/Schematics (1)
- - - Manufacturers Literature (RCA Victor Service Manual (Montreal, Canada))
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
