• Country
• Canada

• Manufacturer / Brand
• RCA Victor (International), Montreal

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 148588

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6SA7 6K7G 6Q7G 6K6G 5Y4G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

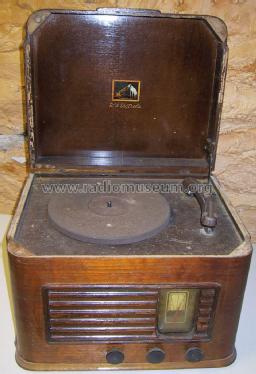

• Model: VR-145 - RCA Victor International,

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 416 x 297 x 340 mm / 16.4 x 11.7 x 13.4 inch

• Source of data
• -- Original-techn. papers.

• Mentioned in
• RCA 1946 No. 2

• Author
• Model page created by Ashis Mukerjea. See "Data change" for further contributors.
