• Country
• Canada

• Manufacturer / Brand
• RCA Victor (International), Montreal

• Year
• 1946 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 299325

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SA7 6SK7 6SQ7 6AD7G 6F6G 5Y4G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 105 to 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Power out
• 3.5 W (5 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: VR146 - RCA Victor International,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 26.5 x 38.2 x 15 inch / 673 x 970 x 381 mm

• Notes

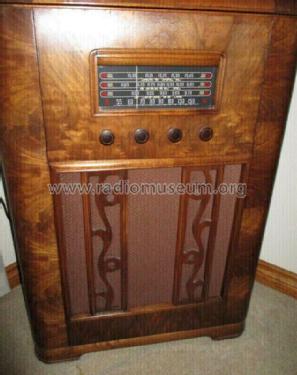

• The Canadian RCA Victor model VR146 is a 6-tube radio / 78 rpm record player console.
  Covers the following ranges:

  Range	Frequency
  BC	540-1570 kHz
  31m	9.45-9.70 MHz
  25m	11.68-11.92 MHz
  19m	15.03-15.38 MHz

  For 25 or 60 Hz depending on nameplate rating.

• Literature/Schematics (1)
• RCA Service Manual Vol 4 P. 187

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
