- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 148930

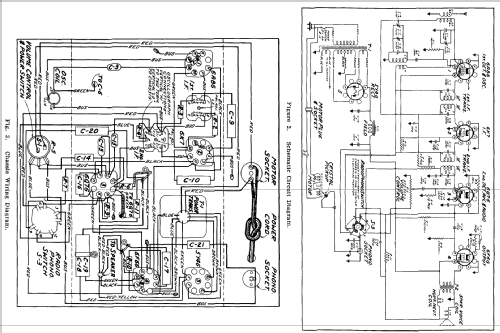

Picture taken from RCA Service Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: VR3 - RCA Victor International,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 15.25 x 11.75 x 13 inch / 387 x 298 x 330 mm
- Net weight (2.2 lb = 1 kg)
- 12.3 kg / 27 lb 1.5 oz (27.093 lb)
- Source of data
- -- Original-techn. papers.
- Mentioned in
- Volume 1939-1940 page 109
- Author
- Model page created by Ashis Mukerjea. See "Data change" for further contributors.
