- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 152627
RCA Volume 2 page 131

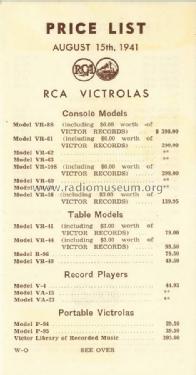

RCA prospectus B-5002-7-41
RCA prospectus B-5002-7-41
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 1.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: VR40 - RCA Victor International,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 12.25 x 9 x 9.5 inch / 311 x 229 x 241 mm
- Net weight (2.2 lb = 1 kg)
- 7.2 kg / 15 lb 13.7 oz (15.859 lb)
- Price in first year of sale
- 49.50 CD$
- Circuit diagram reference
- Radio College of Canada
- Mentioned in
- RCA Volume 2 page 131
- Author
- Model page created by Ashis Mukerjea. See "Data change" for further contributors.
