• Country
• Canada

• Manufacturer / Brand
• RCA Victor (International), Montreal

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 152628

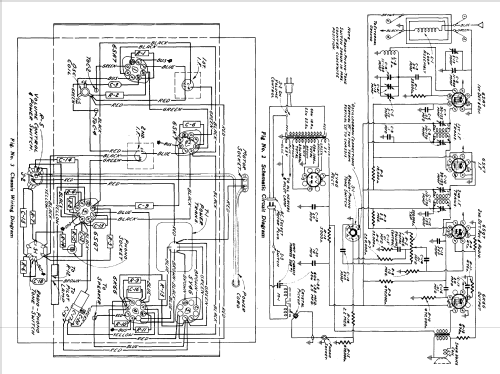

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6SA7 6SK7 6SQ7 6K6G 5Y4G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 4.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

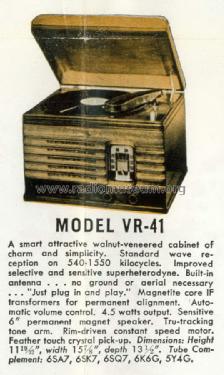

• Model: VR41 - RCA Victor International,

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 15.88 x 11.59 x 13.5 inch / 403 x 294 x 343 mm

• Notes

• Built-in antenna, avc, 6" permanent magnet speaker, crystal pickup.

• Net weight (2.2 lb = 1 kg)
• 11.4 kg / 25 lb 1.8 oz (25.11 lb)

• Price in first year of sale
• 79.00 CD$

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• RCA Volume 2 page 135

• Author
• Model page created by Ashis Mukerjea. See "Data change" for further contributors.
