• Country
• Canada

• Manufacturer / Brand
• RCA Victor (International), Montreal

• Year
• 1941 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 234838

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6SA7 6SK7 6SQ7 6F6G 5Y4G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 105 to 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2 W (4.5 W max.)

• Material
• Wooden case

• from Radiomuseum.org

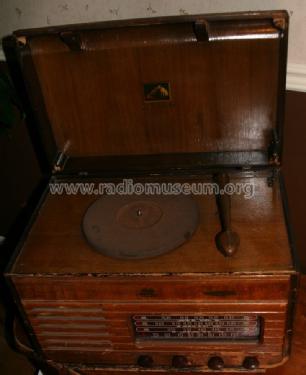

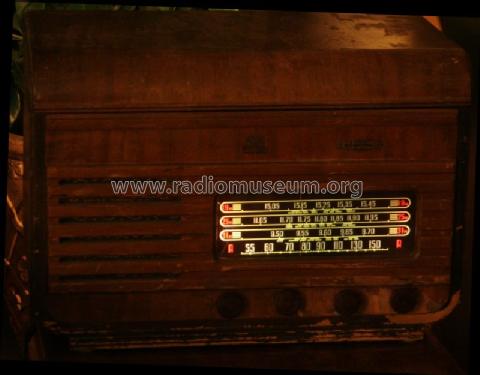

• Model: VR-44A - RCA Victor International,

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 330 x 525 x 350 mm / 13 x 20.7 x 13.8 inch

• Notes

• RCA Victor VR-44A. With 6 x 9 inch eliptical speaker.

• Literature/Schematics (1)

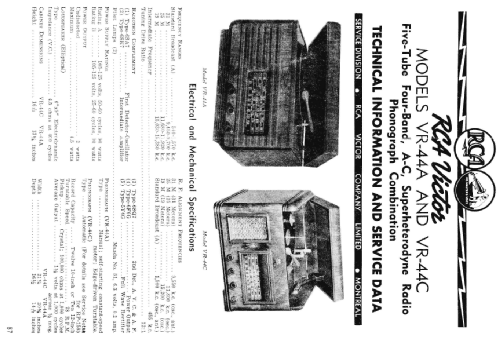

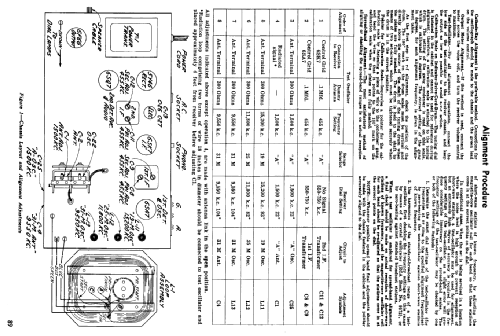

• RCA Service Manual Vol 3 P. 87

• Author
• Model page created by Hugues Beaulieu. See "Data change" for further contributors.
