- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1948/1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 183330
From service manual.

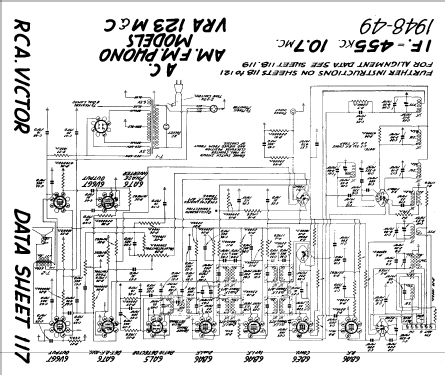

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 4.5 W (7 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: VRA123M - RCA Victor International,
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 37 x 33.5 x 17 inch / 940 x 851 x 432 mm
- Notes
-

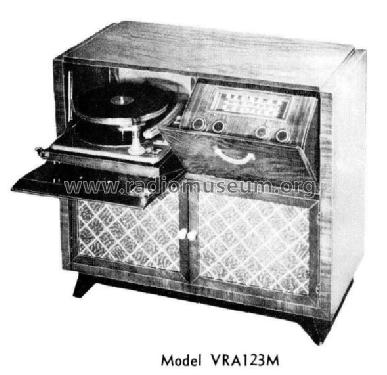

The Canadian RCA-Victor model VRA123M is a 10-tube AM/FM/SW radio and 78 rpm record changer console with crystal pickup. Covers standard broadcast and 9.4-15.8 MHz shortwave and 88-108 MHz FM. For 25 or 60 Hz depending on nameplate rating.
Except for cabinet, same as model VRA123C.
- Circuit diagram reference
- Radio College of Canada
- Literature/Schematics (1)
- Canada schematics RCA Victor page 117 to 121
- Literature/Schematics (2)
- RCA Service Manual Vol 4 P. 169
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
- Other Models
-
Here you find 667 models, 438 with images and 606 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from RCA Victor (International), Montreal
