- Country
- Canada
- Manufacturer / Brand
- RCA Victor (International), Montreal
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 293028
Click on the schematic thumbnail to request the schematic as a free document.

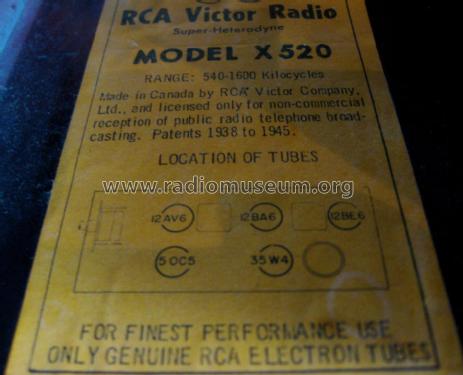

- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 1 W (1.5 W max.)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: X520 - RCA Victor International,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The Canadian RCA Victor model X520 is a broadcast table radio available in Blue, Black, Burgundy, Green, Ivory, White and Yellow cabinet. It uses an internal loop antenna, and has a phono input. The circuit is constructed on a printed circuit board.
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
