• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 302270

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• 6BJ6 19X8 12BA6 12AU6 12AU6 12AV6 12AL5 6CG7 6CG7 6V6GT 6V6GT 5Y3GT 35W4

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt

• Loudspeaker
• 3 Loudspeakers / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Victrola 6-HF-3 Ch= RC1155 + RS151 - RCA RCA Victor Co. Inc.; New

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 35 x 34.25 x 16.5 inch / 889 x 870 x 419 mm

• Notes

• RCA Victrola 6-HF-3 with chassis RC1155 (radio) and RS151 (amplifier) is an AC operated 13-tube console radiogram. It features BC band (with CD-marks) and FM reception and a record changer.

• Literature/Schematics (1)

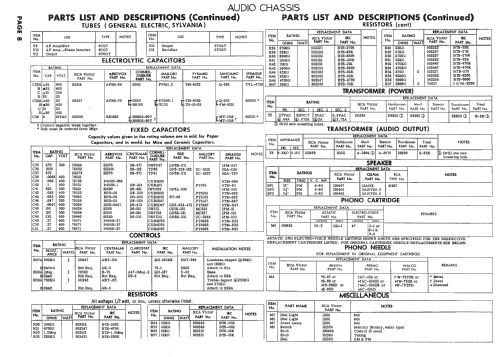

• Photofact Folder, Howard W. SAMS (set 323 Folder 11)

• Author
• Model page created by Andrew Calhoun. See "Data change" for further contributors.
