• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1956

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 99129

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6AL5 12AU7 6AL5

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105-125 & 1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

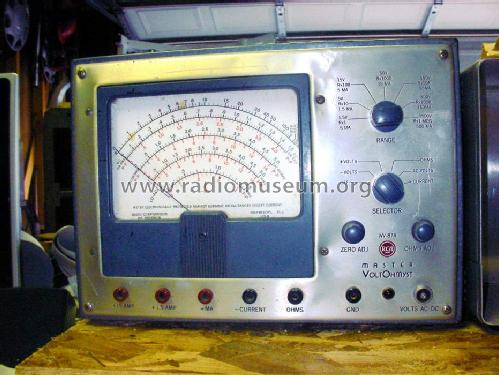

• Model: Master Voltohmyst WV-87-A - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 13.5 x 10 x 7.5 inch / 343 x 254 x 191 mm

• Notes
• Deluxe VTVM, response 30 cps to 3 mc.

• Price in first year of sale
• 113.00 $

• Literature/Schematics (1)
• Allied Radio Catalog Nº 150, 1956

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
