• Country
• United States of America (USA)

• Manufacturer / Brand
• RCA (RCA Victor Co. Inc.); New York (NY)

• Year
• 1950 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 97768

• • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6AL5 12AU7 6AL5

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 117 & 1.5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

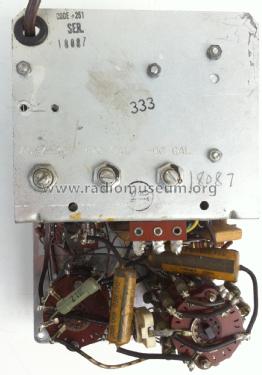

• Model: Senior Voltohmyst WV-97-A - RCA RCA Victor Co. Inc.; New

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 5.25 x 7.75 x 3.75 inch / 133 x 197 x 95 mm

• Notes
• Measure peak-to-peak voltages up to 4200 volts.

• Price in first year of sale
• 68.00 $

• Literature/Schematics (1)
• 1951 Newark catalog Nº 51

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
