• Country
• Chile

• Manufacturer / Brand
• RCA, Corporacion de radio de Chile S.A.; Santiago de Chile

• Year
• 1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 216424

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

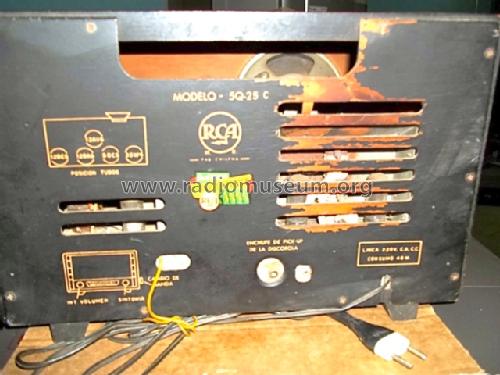

• Model: 5Q25-C - RCA, Corporacion de radio de

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 385 x 260 x 196 mm / 15.2 x 10.2 x 7.7 inch

• Notes
• Coverage:
  5Q25 MW: 550 - 1600 kHz.
  5Q25 SW: 49 - 25 mt.
  5Q25: Power Consumption 48 W.

• Author
• Model page created by Bruno Gandolfo-Canepa. See "Data change" for further contributors.
