• Country
• Chile

• Manufacturer / Brand
• RCA, Corporacion de radio de Chile S.A.; Santiago de Chile

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 132659

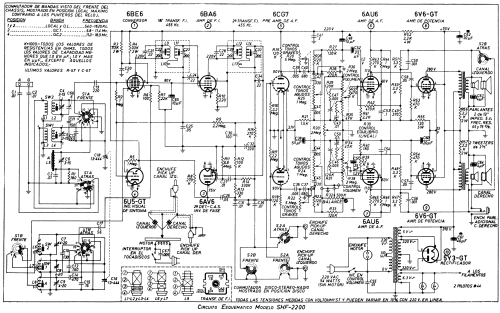

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6BE6 6BA6 6AV6 6CG7 6AU6 6AU6 6V6GT 6V6GT 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 4 Loudspeakers / Ø 12 inch = 30.5 cm

• Power out
• 8 W (10 W max.)

• Material
• Wooden case

• from Radiomuseum.org

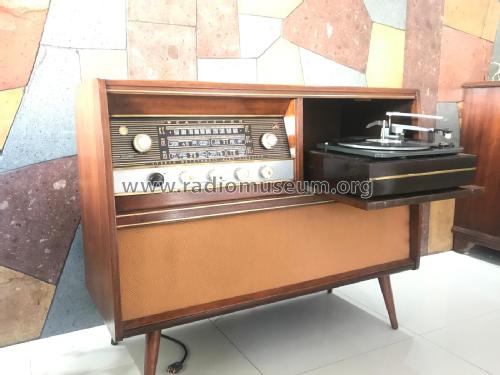

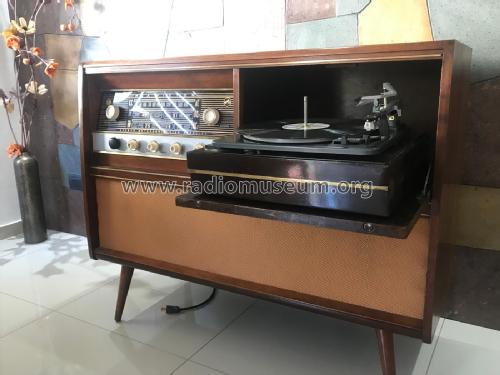

• Model: SHF-2200 - RCA, Corporacion de radio de

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 860 x 1000 x 430 mm / 33.9 x 39.4 x 16.9 inch

• Notes
• Consola Stereo con caja acústica adicional para el canal derecho. Cambiador automático RP-197-3E. Onda Media, dos ondas cortas 6-11Mhz y 11-18Mhz.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Víctor Caselli-Diaconescu. See "Data change" for further contributors.

• Other Models

• Here you find 67 models, 65 with images and 18 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from RCA, Corporacion de radio de Chile S.A.; Santiago de Chile
