• Country
• Italy

• Manufacturer / Brand
• RCF; Reggio Emilia (AEB Industriale s.r.l., dBtechnologies)

• Year
• 1995 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 256454

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: AM Stereo FM Synthesizer Tuner TD 2040 - Art. Nr.171.20.028 - RCF; Reggio Emilia AEB

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 433 x 44 x 244 mm / 17 x 1.7 x 9.6 inch

• Notes

• AM/FM-Tuner TD 2040 mit 16 Stationsspeicher.

  Manuelles und automatisches Abstimmen.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Mentioned in

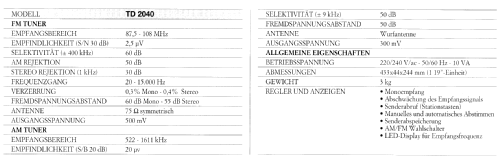

• -- Original prospect or advert

• Author
• Model page created by a member from D. See "Data change" for further contributors.
