Amplificatore AM715
RCF; Reggio Emilia (AEB Industriale s.r.l., dBtechnologies)
- Country
- Italy
- Manufacturer / Brand
- RCF; Reggio Emilia (AEB Industriale s.r.l., dBtechnologies)
- Year
- 1968 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 226881
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Number of Transistors
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 120; 160; 220; 260 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 15 W (25 W max.)
- Material
- Metal case
- from Radiomuseum.org

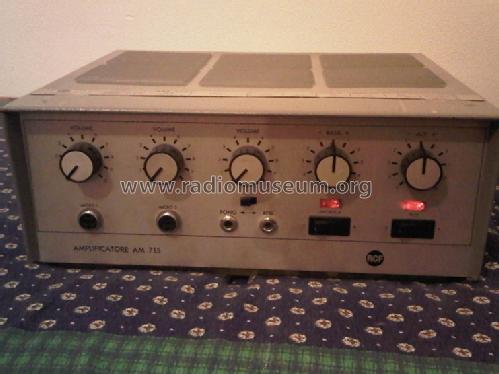

- Model: Amplificatore AM715 - RCF; Reggio Emilia AEB
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 330 x 135 x 280 mm / 13 x 5.3 x 11 inch
- Notes
-
PA/Audio amplifier. Transistorized preamp and phono section. Inputs for 2 microphones, recordplayer and recorder. Output impedance 2 / 4 / 8 / 16 / 81 or 325 (70 V) Ohms.
- Net weight (2.2 lb = 1 kg)
- 9.3 kg / 20 lb 7.8 oz (20.485 lb)
- Author
- Model page created by Danilo Rossi. See "Data change" for further contributors.
