• Country
• Italy

• Manufacturer / Brand
• RCF; Reggio Emilia (AEB Industriale s.r.l., dBtechnologies)

• Year
• 1970 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 160261

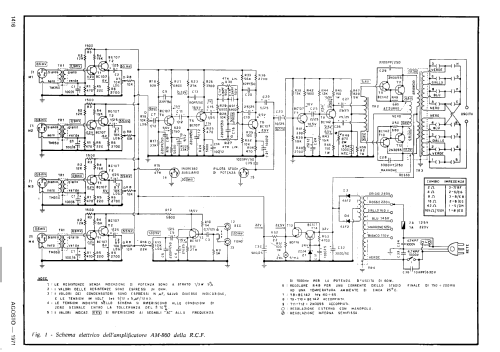

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110/240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Amplificatore B.F. AM-960 - RCF; Reggio Emilia AEB

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 160 x 305 mm / 15.7 x 6.3 x 12 inch

• Notes
• Potenza: lavoro 60 Watt massima 100 Watt
  Risposta in Frequenza: 20-20000 Hz +-2dB
  Circuiti di Entrata: 2 microf. -1 regist. -1 fono mag. -1 fono/radio
  Circuiti di Uscita:per pilotaggio unita di potenza-per registratore
  Sesibilita:microf. 0,6mV-fono mag. 25mV-fono/radio 150mV

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Literature/Schematics (1)

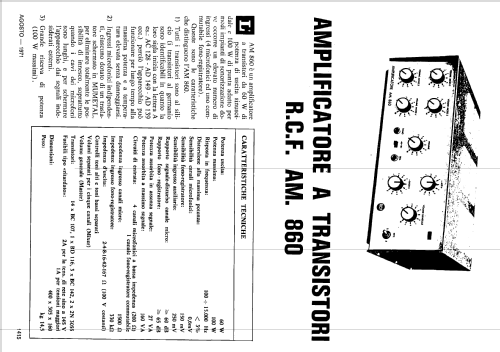

• Selezione Radio-TV Settembre 1973

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
