• Country
• Italy

• Manufacturer / Brand
• RCF; Reggio Emilia (AEB Industriale s.r.l., dBtechnologies)

• Year
• 1978 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 196598

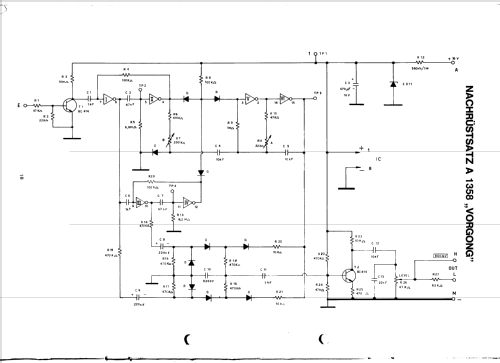

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 25

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / 24 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 120 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Ela AM-5120 - RCF; Reggio Emilia AEB

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 446 x 133 x 360 mm / 17.6 x 5.2 x 14.2 inch

• Notes

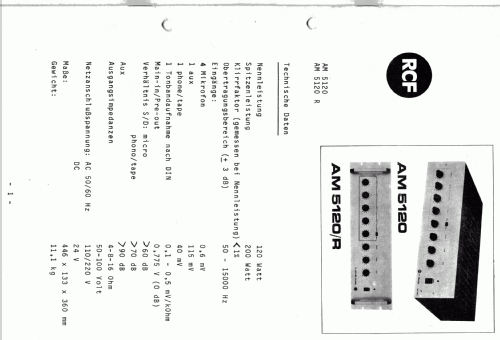

• ELA Mischverstärker in Tischausführung,
  Sinus 120W, Musik 200W,
  4 Mikro-Eingänge0,6mV,
  1 Aux-Eingang 115mV,
  1 Phone/Tape-Eingang 40mV,
  Summenregler,getrennte Höhen- und Tiefensteller.

• Net weight (2.2 lb = 1 kg)
• 11.1 kg / 24 lb 7.2 oz (24.449 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.

• Other Models

• Here you find 122 models, 122 with images and 53 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from RCF; Reggio Emilia (AEB Industriale s.r.l., dBtechnologies)
